Coxmate Photos

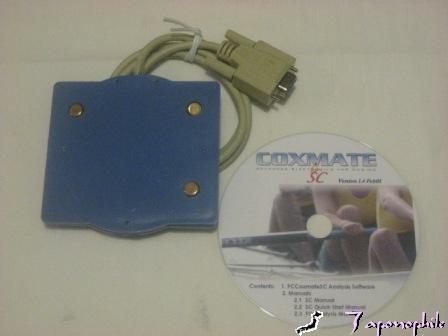

SCT Software SCT Software showing the magnetic software mounting plate (the SCT connects to this) and the cable that plugs into the Serial Port of your PC, plus the installation disc for the software. Note if your computer does not have a serial port, you'll need a Serial to USB converter cable as well.

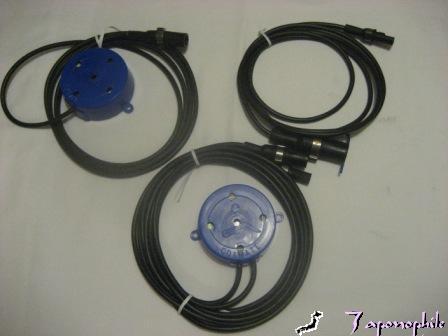

AA wiring kit 4 AA wiring kit for a Four. This modular loom has each speaker with a wire connecting it to the next one. Top left is the end speaker, middle is the central one and the top right cable connects the speakers to the base unit. Note there is no magnet for a stroke seat sensor to take ratings. If you want that, choose SRT/SCT wiring loom. All Coxmate wiring looms are fully compatible to fit popular competing makes as well as Coxmates.

SR/SC wiring loom for 8 SRT/SCT wiring kit for an Eight. This modular loom has each speaker with a wire connecting it to the next one. Top left is the end speaker, bottom row has three middle speakers and the top right cable is the stroke seat rate sensor magnet and the wire that connects the speakers to the base unit. All Coxmate wiring looms are fully compatible to popular competing makes as well as Coxmates.

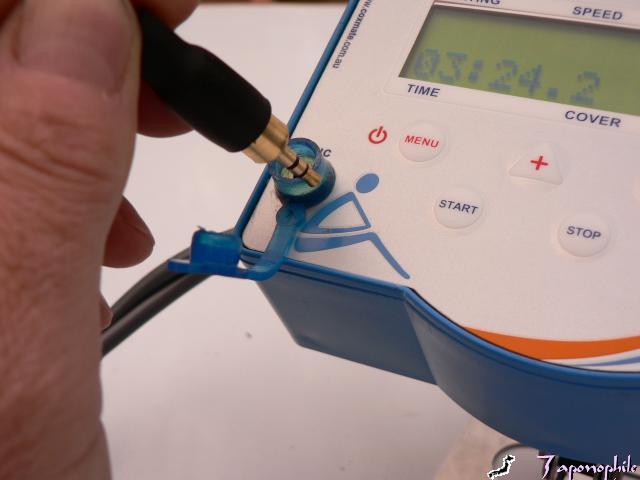

SCT microphone jack Microphone jack plug detail for the SCT Coxmate unit. Using a jack plug, the microphone has both a waterproof connection and a robust means of incorporating the microphone onto the base unit.

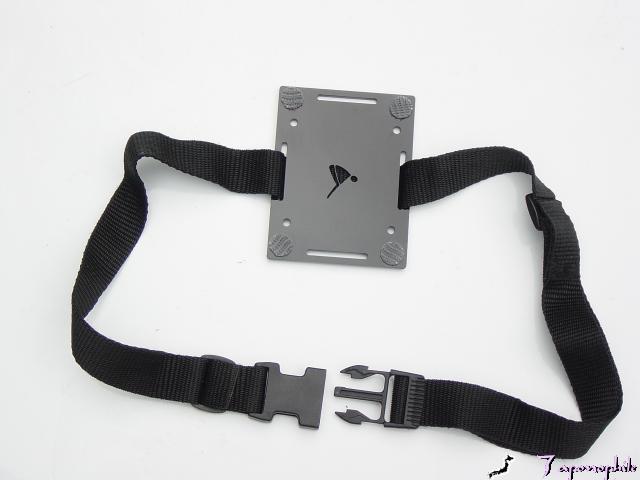

AA mounting plate The AA voice-only Coxmate has a mounting block that attaches to the coxswain's waist or leg. The strap is adjustable in length. Each of the four corners of the plate have hard plastic velcro spots which enable the unit to connect firmly in place. In this way, a cox can get out of the boat having unplugged the base unit with both hands free leaving accidents less likely to happen.

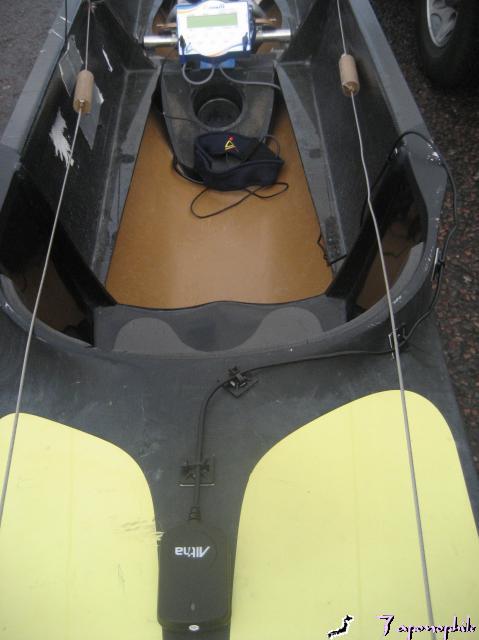

GPS and SCT in boat The GPS sensor is mounted on a magnetic plate behind the cox on the stern canvas. Optional cable ties keep the wire neat and run it down into the cox seat to connect to the base of the SCT magnetic mount in a permanent connection.

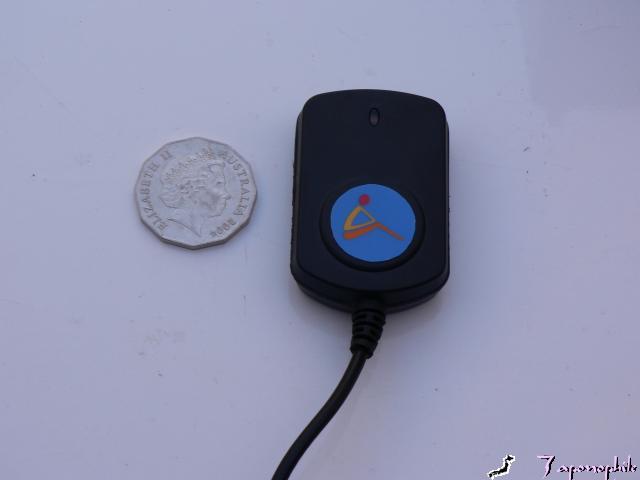

GPS and coin Coxmate GPS sensor against a UK 20 pence coin showing scale.

The smiling coxswain! Mark Briegal's coxswain daughter tests out the equipment and gives us her best smile!

Coxmate Loom Sealing Gland  If you have sealed compartments in your rowing boat and want to install a Coxmate Wiring loom, these glands keep a watertight seal and allow for easy access in the future should you need to repair / replace one of the modular sections.

Coxmate Car Charger  Coxmate car charger for those emergencies at regattas….

SRT / SCT battery pack   AA Battery pack  Coxmate battery packs are easy to replace – SRT/SCT on LHS and AA Battery on RHS.  You can fit these yourself.
